A worldwide correlation of lactase persistence phenotype and genotypes

  • Yuval Itan1, 2Email author,

    Affiliated with

    • Bryony L Jones1,

      Affiliated with

      • Catherine JE Ingram1,

        Affiliated with

        • Dallas M Swallow1 and

          Affiliated with

          • Mark G Thomas1, 2, 3

            Affiliated with

            BMC Evolutionary Biology201010:36

            DOI: 10.1186/1471-2148-10-36

            Received: 28 July 2009

            Accepted: 9 February 2010

            Published: 9 February 2010

            Abstract

            Background

            The ability of adult humans to digest the milk sugar lactose - lactase persistence - is a dominant Mendelian trait that has been a subject of extensive genetic, medical and evolutionary research. Lactase persistence is common in people of European ancestry as well as some African, Middle Eastern and Southern Asian groups, but is rare or absent elsewhere in the world. The recent identification of independent nucleotide changes that are strongly associated with lactase persistence in different populations worldwide has led to the possibility of genetic tests for the trait. However, it is highly unlikely that all lactase persistence-associated variants are known. Using an extensive database of lactase persistence phenotype frequencies, together with information on how those data were collected and data on the frequencies of lactase persistence variants, we present a global summary of the extent to which current genetic knowledge can explain lactase persistence phenotype frequency.

            Results

            We used surface interpolation of Old World lactase persistence genotype and phenotype frequency estimates obtained from all available literature and perform a comparison between predicted and observed trait frequencies in continuous space. By accommodating additional data on sample numbers and known false negative and false positive rates for the various lactase persistence phenotype tests (blood glucose and breath hydrogen), we also apply a Monte Carlo method to estimate the probability that known lactase persistence-associated allele frequencies can explain observed trait frequencies in different regions.

            Conclusion

            Lactase persistence genotype data is currently insufficient to explain lactase persistence phenotype frequency in much of western and southern Africa, southeastern Europe, the Middle East and parts of central and southern Asia. We suggest that further studies of genetic variation in these regions should reveal additional nucleotide variants that are associated with lactase persistence.

            Background

            An estimated 65% of human adults (and most adult mammals) downregulate the production of intestinal lactase after weaning. Lactase is necessary for the digestion of lactose, the main carbohydrate in milk [1], and without it, milk consumption can lead to bloating, flatulence, cramps and nausea [2]. Continued production of lactase throughout adult life (lactase persistence, LP) is a genetically determined trait and is found at moderate to high frequencies in Europeans and some African, Middle Eastern and Southern Asian populations (see Additional File 1 and Figure 1).
            http://static-content.springer.com/image/art%3A10.1186%2F1471-2148-10-36/MediaObjects/12862_2009_Article_1252_Fig1_HTML.jpg
            Figure 1

            Interpolated map of Old World LP phenotype frequencies. Dots represent collection locations. Colours and colour key show the frequencies of the LP phenotype estimated by surface interpolation.

            The most frequently used non-invasive methods for identifying the presence of intestinal lactase are based upon detecting digestion products of lactose produced by the subject (Blood Glucose, BG) or gut bacteria (Breath Hydrogen, BH). For both methods a lactose load is administered to the subject following an overnight fast. In individuals producing lactase this leads to a detectable increase in blood glucose. In individuals who are not producing lactase, the undigested lactose will pass into the colon where it is fermented by various gut bacteria, producing fatty acids and various gases, particularly hydrogen. Hydrogen passes through the blood into the lungs and so can be detected in the breath using a portable hydrogen analyser. Both the BG and the BH tests have asymmetric type I and type II error rates. Thus any study seeking association between a particular polymorphism and LP should take these error rates into account. In addition it should be noted that while in most cases the presence/absence of intestinal lactase in an adult is likely to be genetically determined, the loss of lactase can also be caused by gut trauma such as gastroenteritis [36]. Other non-invasive methods for detecting the presence/absence of lactase include assaying for urine galactose and detecting metabolites of Carbon-14-labelled lactose. These methods are rarely used today. The most reliable method is intestinal biopsy, which provides a direct determination of intestinal lactase activity. However, this procedure is very rarely used for diagnosing healthy individuals because of its invasive nature [7].

            With the recent discovery of nucleotide changes associated with LP comes the prospect of direct genetic tests for the trait [810]. However, it has become clear that there are multiple, independently derived LP-associated alleles with different geographical distributions [1, 8, 11, 12]. LP is particularly common in Europe and certain African and Middle Eastern groups. As a consequence these are the regions where most genetic studies have been focused and all currently known LP alleles have been identified [7, 11, 12]. The first allelic variant that was shown to be strongly associated with increased lactase activity is a C>T change 13,910 bases upstream of the LCT gene in the 13th intron of the MCM6 gene [13]. Functional studies have indicated that this change may affect lactase gene promoter activity and increase the production of lactase-phlorizin hydrolase mRNA in the intestinal mucosa [1417] but, as with all LP-associated variants, there remains the possibility that linkage to as yet unknown causative nucleotide changes may explain observed associations. Haplotype length conservation [18], linked microsatellite variation [19] and ancient DNA analysis from early European farmers [20] later confirmed that this allele has a recent evolutionary origin and had been the subject of strong positive natural selection. Furthermore, a simulation model of the origins and evolution of lactase persistence and dairying in Europe has inferred that natural selection started to act on an initially small number of lactase persistent dairyers around 7,500 BP in a region between Central Europe and the northern Balkans, possibly in association with the Linearbandkeramik culture [21]. Another simulation study has inferred that it is likely that lactase persistence selective advantage was not constant over Europe, and that demography was a significant element in the evolution and spread of European lactase persistence [22].

            However, the presence of this allele could not explain the frequency of LP in most African populations [8]. Further studies identified three additional variants that are strongly associated with LP in some African and Middle Eastern populations and/or have evidence of function, all are upstream of the LCT gene in the 13th intron of the MCM6 gene: -13,907*G, -13,915*G and -14,010*C [11, 12, 23, 24]. Where data were sufficient, some of these alleles also showed genetic signatures of a recent origin and strong positive natural selection [12, 23].

            Although at least four strong candidate causative alleles have been identified, only a small number of populations have been studied, and those are confined to Europe, Africa and the Middle East. It is therefore unlikely that all LP-associated or LP-causing alleles are currently known. As a consequence, genetic tests based on current knowledge would underestimate the frequency of LP in most world populations. As part of the first study to seek a genetic explanation for the distribution of LP in Africa [8], a statistical procedure (GenoPheno) was developed to test if the frequency of an LP-associated allele could explain reported LP frequency in ethnically matched populations. Crucially, this statistical procedure was designed to account for sampling errors and the asymmetric type I and type II error rates associated with different phenotype tests (BH and BG).

            In this study we have sought to extend this approach to the whole of the Old World. However, while there is a rich literature on the frequencies of LP in different geographic regions [1] and a growing body of publications reporting the frequencies of candidate LP-causing alleles, in most cases the genetic and phenotypic data are not from the same people and often not of closely neighbouring groups. Thus, characterization of the extent to which LP frequency can be explained by current knowledge of LP-associated genotype frequencies is limited to populations where both data types are available. To overcome this problem we performed surface interpolation of various data categories (genetic, phenotypic, sample numbers, phenotype tests used and their associated error rates) and applied the statistical procedures described on a fine grid covering the Old World landmass. This has allowed us to identify regions where reported LP-associated allele frequencies are insufficient to explain the presence of LP. These regions should be good candidates for future genotype/phenotype studies.

            Methods

            Data

            Our global LP phenotype dataset consists of 112 locations [1] (see Additional File 1). These data were carefully selected from a large literature on LP frequencies so as to remove data collected from (1) children, (2) patients selected for likely lactose intolerance, (3) family members, and (4) people with twentieth/twenty-first century immigrant status. Genotype data was obtained for 132 locations where the frequency of the -13,910 C>T allele had been estimated [7, 8, 11, 18, 2527], and from 61 locations where the frequency of all 4 currently known LP associated allelic variants had been estimated [12, 23, 26, 28] (see Additional File 2). These data were carefully selected from a large literature on LP frequencies so as to remove data collected from (1) patients selected for likely lactose intolerance, (2) family members, and (3) people with twentieth/twenty-first century immigrant status. Where there was more than one dataset for a particular location (for either genotype or phenotype data), a weighted average frequency was calculated. The type I and type II error rates used were 8.621% and 6.849%, respectively, for BG and 6.818% and 4.167%, respectively, for BH [8]. Predicted LP frequencies, from the LP genotype frequencies, were calculated by assuming Hardy-Weinberg equilibrium and dominance (see Additional File 2).

            The geographic space explored was from longitude -19 to 180, and from latitude -48 to 72.

            Surface Interpolation

            To estimate the distribution of LP and LP-associated allele frequencies in continuous space, from irregularly spaced data, surface interpolation was performed using the Natural Neighbour algorithm [29, 30], as implemented in the PyNGL module of the Python programming language [3133]. Briefly, this algorithm first divides a 2-dimentional space into polygons according to the locations of the observed data points, then estimates the value at locations for which data is absent by weighting each of the neighbouring locations by their relative overlap.

            Quantitative Difference Correlation Analysis

            We also performed an analysis to quantify the difference between phenotype frequency and predicted phenotype frequency based on the frequency of LP-associated alleles. As above, we assumed Hardy-Weinberg equilibrium and performed surface interpolation using the data provided in the tables of Additional Files 1 and 2. We then subtracted the surface representing expected frequencies from that representing observed LP frequencies. Maps were plotted using PyNGL [33]. The code for the program is available from the authors.

            GenoPheno Correlation Analysis

            To identify regions where LP-associated allele frequencies are insufficient to explain observed LP incidence we applied the Monte Carlo based statistical test GenoPheno [8] to each cell in a 198 (west-east) by 119 (south-north) grid of covering the Old World. For each cell it was necessary to provide information on LP-associated allele frequencies and LP incidence (see above) as well as on sample numbers used for each data type and type I and type II error rates for the LP phenotype tests used. These parameters were estimated by surface interpolating values from genetic and phenotypic studies to provide 6 surface interpolated 'layers' of information. The code for the program is available from the authors.

            Similar Populations at Similar Regions Analysis

            To demonstrate LP specific genotype-phenotype correlation analysis without interpolation (Table 1) we have performed quantitative difference and GenoPheno tests (as described above) on phenotype and genotype data (from the tables of Additional Files 1 and 2, respectively) where: (1) the ethnic groups are similar, and (2) the country/region is similar and a deviation of maximum 3 degrees between the two data points.
            Table 1

            The GenoPheno correlation for similar ethnic groups at similar regions

            Population

            Lactase persistence genotype data

            Lactase persistence phenotype data

            Genotype-phenotype correlation

            Continent

            Country

            Population

            N

            Sum of LP-associated alleles frequency

            Predicted LP freq.

            Ref.

            N

            Pheno. Freq.

            Testing method

            Ref.

            GenoPheno P-value

            Genotype - phenotype quantitative difference

            Africa

            Nigeria

            Yoruba

            50

            0.00

            0.00

            [18]

            48

            0.17

            BG

            [43]

            0.5670

            0.17

            Africa

            Senegal

            Wolof

            118

            0.00

            0.00

            [24]

            53

            0.51

            BG

            [44]

            <0.00005

            0.51

            Africa

            Sudan

            Beni Amer

            162

            0.26

            0.45

            [24]

            40

            0.88

            BH

            [45]

            <0.00005

            0.42

            Africa

            Uganda

            Bantu

            44

            0.00

            0.00

            [8]

            17

            0.06

            BG

            [46]

            0.7552

            0.06

            Asia

            China

            Kazakh

            94

            0.00

            0.00

            [47]

            195

            0.24

            BH

            [48]

            0.0026

            0.24

            Asia

            India

            Indian

            68

            0.07

            0.14

            [7]

            38

            0.00

            BIOPSY

            [49]

            0.0024

            -0.14

            Asia

            Japan

            Japanese

            62

            0.00

            0.00

            [18]

            40

            0.28

            BG

            [50]

            0.0432

            0.28

            Asia

            North India

            Northern Indian

            128

            0.33

            0.55

            [7]

            136

            0.55

            BG

            [51, 52]

            1.0000

            0.00

            Asia

            Russia

            Komi

            20

            0.15

            0.28

            [23]

            56

            0.38

            BG

            [53]

            0.9248

            0.10

            Europe

            Finland

            Finns

            1876

            0.58

            0.82

            [23]

            638

            0.83

            BIOPSY

            [54]

            0.3686

            0.01

            Europe

            Greece

            Greek

            100

            0.09

            0.17

            [40]

            200

            0.25

            BH

            [55]

            0.8136

            0.08

            Europe

            Hungary

            Hungarian

            110

            0.62

            0.86

            [56]

            262

            0.59

            BH

            [57]

            <0.00005

            -0.26

            Europe

            Ireland

            Irish

            65

            0.95

            1.00

            [8]

            50

            0.96

            BG

            [58]

            0.6014

            -0.04

            Europe

            Italy

            Sardinian

            153

            0.07

            0.14

            [40]

            47

            0.15

            BH

            [59]

            0.5530

            0.01

            Europe

            Italy

            North Italian

            28

            0.36

            0.59

            [18]

            208

            0.49

            BH

            [60]

            0.3348

            -0.10

            Europe

            Italy

            Central Italian

            98

            0.11

            0.21

            [40]

            65

            0.82

            BG

            [61]

            <0.00005

            0.61

            Europe

            Italy

            Southern Italian

            189

            0.08

            0.15

            [40]

            99

            0.46

            BH

            [62]

            <0.00005

            0.31

            Near/Middle East

            Afghanistan

            Tadjik

            98

            0.30

            0.51

            [7]

            79

            0.18

            BG

            [63]

            <0.00005

            -0.33

            Near/Middle East

            Afghanistan

            Pashtu

            16

            0.10

            0.19

            [18]

            71

            0.21

            BG

            [63]

            0.3588

            0.02

            Near/Middle East

            Iran

            Iranian

            42

            0.10

            0.19

            [23]

            21

            0.14

            BG

            [64]

            0.4154

            -0.05

            Near/Middle East

            Israel

            Arabs

            160

            0.05

            0.10

            [24]

            67

            0.19

            BG

            [65]

            0.8966

            0.10

            Near/Middle East

            Jordan

            Jordanian

            112

            0.11

            0.20

            [23]

            162

            0.76

            BH

            [66]

            <0.00005

            0.55

            Near/Middle East

            Pakistan

            Balochi

            50

            0.00

            0.00

            [18]

            32

            0.38

            BH

            [67]

            0.0036

            0.38

            Near/Middle East

            Saudi Arabia

            Bedouin

            94

            0.48

            0.73

            [23]

            21

            0.81

            BH

            [68]

            0.5166

            0.08

            Near/Middle East

            Turkey

            Turks

            98

            0.03

            0.06

            [8]

            126

            0.30

            BH

            [69]

            0.0076

            0.24

            GenoPheno was used to calculate the P-value for lack of correlation between the predicted phenotype (based on all 4 known LP-associated alleles) and the observed phenotype at locations where the ethnic groups were similar, and so expected to have a good genotype-phenotype correlation. Unlike figures 5 and 6, interpolation was not used here, but rather observed points analyses.

            Sample Density Analysis

            To indicate regions where genotype and phenotype sampling is sparse we used a 2-dimensional kernel density estimation [34, 35], as implemented in the KernSmooth package of the R statistical programming environment [36]. We used an isotropic kernel with a bandwidth equal to half of the average nearest neighbour distance (ANND) between sample points, to ensure that >95% of each Gaussian sampling region will be within the ANND.

            Results

            Interpolated LP Phenotype Frequencies

            Figure 1 shows an interpolated map of the frequencies of LP based on phenotype tests (also see Additional File 1, [1]). Although this map should provide a reasonable representation of frequencies in Europe and western Asia, it should be noted that (1) data is sparse at eastern and northern Asia, Indonesia, Melanesia, Australia and Polynesia, and (2) in Africa and the Middle East it is often the case that populations living in close proximity to each other have dramatically different LP frequencies, depending to an extent on traditional subsistence strategies [1].

            Interpolated Predicted LP Phenotype Frequencies

            Figure 2 shows an interpolated map of the frequencies of LP predicted by all 4 currently known LP associated allelic variants, based on genotyping tests (see Additional File 2, [7, 8, 11, 18, 2527]). As with the phenotype data, the genotype data is sparse in eastern and northern Asia, Indonesia, Melanesia, Australia and Polynesia.
            http://static-content.springer.com/image/art%3A10.1186%2F1471-2148-10-36/MediaObjects/12862_2009_Article_1252_Fig2_HTML.jpg

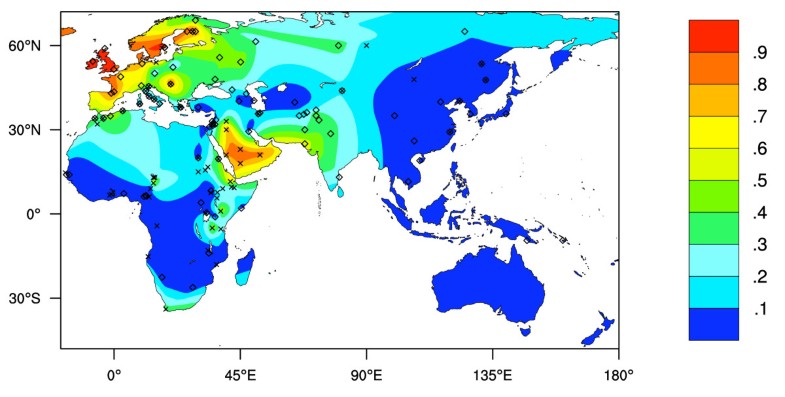

            Figure 2

            Predicted Old World LP phenotype frequencies based on LP-associated allele frequencies. LP frequency prediction assumes Hardy-Weinberg equilibrium and dominance. Crosses represent collection locations where all 4 currently known LP-associated alleles were genotyped, and diamonds represent collection locations where the only data on the -13,910 C>T allele is available. Colour key shows the predicted LP phenotype frequencies estimated by surface interpolation.

            Figure 3 shows an interpolated map of the frequencies of LP predicted by the -13,910 C>T allele data only (see Additional File 2, [7, 8, 11, 18, 2527]).
            http://static-content.springer.com/image/art%3A10.1186%2F1471-2148-10-36/MediaObjects/12862_2009_Article_1252_Fig3_HTML.jpg

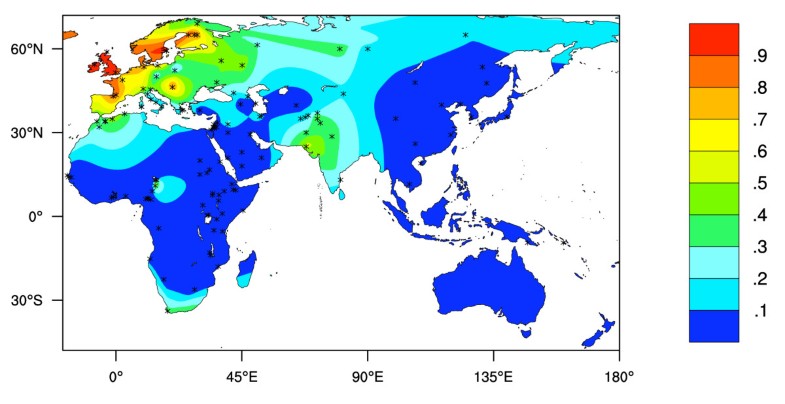

            Figure 3

            Predicted Old World LP phenotype frequencies based on -13,910 C>T allele frequency data only. LP frequency prediction assumes Hardy-Weinberg equilibrium and dominance. Stars represent collection locations. Colour key shows the predicted LP phenotype frequencies estimated by surface interpolation.

            Figure 4 shows an interpolated map of the frequencies of LP predicted by the 3 currently known LP associated allelic variants, excluding the -13,910 C>T allele (see Additional File 2, [12, 23, 26, 28]). While this map provides a reasonable representation of the frequencies of the 3 LP associated allelic variants in eastern Africa and the Middle East, data from the rest of the world is sparse.
            http://static-content.springer.com/image/art%3A10.1186%2F1471-2148-10-36/MediaObjects/12862_2009_Article_1252_Fig4_HTML.jpg

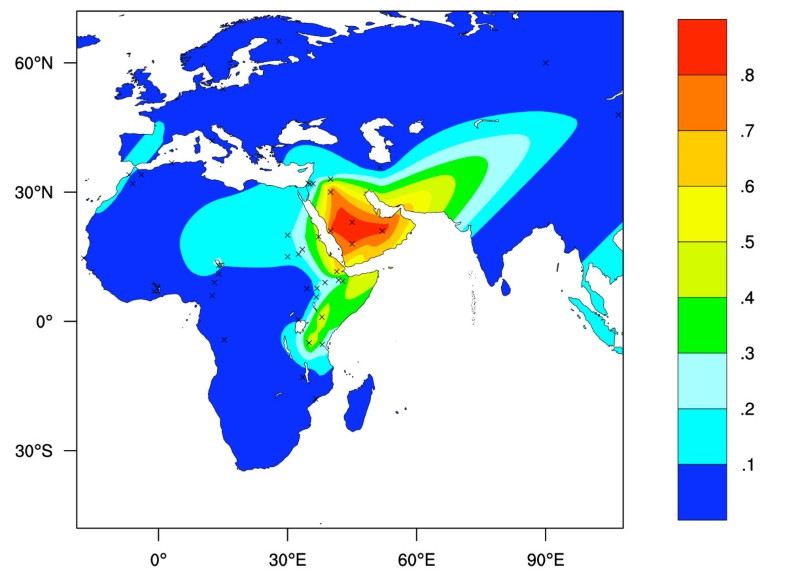

            Figure 4

            Predicted Old World LP phenotype frequencies based on frequency data for the currently known LP associated allelic variants, excluding the -13,910 C>T allele. LP frequency prediction assumes Hardy-Weinberg equilibrium and dominance. Crosses represent collection locations. Colour key shows the predicted LP phenotype frequencies estimated by surface interpolation.

            LP Genotype-Phenotype Correlations

            Figure 5 shows the quantitative difference between observed phenotype frequency and predicted phenotype frequency based on the frequency of 4 LP-associated alleles. This map was obtained by subtracting the surface shown in Figure 2 from that shown in Figure 1. It represents the extent to which current knowledge of the frequencies various LP-associated alleles explains the distribution of the LP trait. In many cases sample numbers used to obtain molecular and phenotype data were small. Additionally, phenotype testing error rates are appreciable. It is therefore possible that, for some regions, where the discrepancies between predicted and observed LP frequencies are high, such differences can be explained by sampling and testing errors alone.
            http://static-content.springer.com/image/art%3A10.1186%2F1471-2148-10-36/MediaObjects/12862_2009_Article_1252_Fig5_HTML.jpg

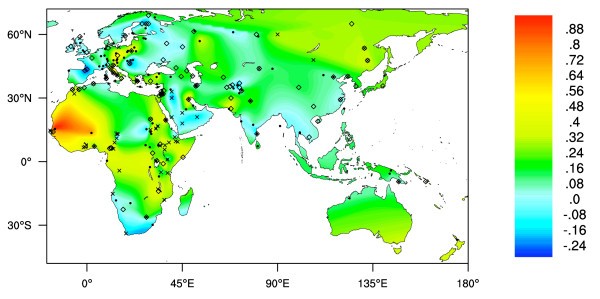

            Figure 5

            Old World LP genotype-phenotype correlation, obtained by calculating the quantitative difference between observed LP phenotype frequency and that predicted using frequency data on all 4 LP-associated alleles. Positive and negative values represent cases of LP-correlated genotype under- and over-predicting the LP phenotype, respectively. Dots represent LP phenotype collection locations, crosses represent data collection locations for all currently known 4 LP-correlated alleles, and diamonds represent -13,910 C>T only data collection locations. Colour key shows the values of the predicted LP phenotype frequencies (Figure 2) subtracted from the observed LP phenotype frequencies (Figure 1).

            To account for the sampling and testing errors, we have applied the Monte Carlo based statistical test GenoPheno [8] to the surfaces presented in Figures 1 and 2. Performing this test also requires data on sample numbers and error rates, for which we generated interpolated surfaces by applying the same reasoning as we have to LP frequencies. By applying the GenoPheno test to 23,562 locations on a 198 by 119 cell grid we obtain the surface presented on Figure 6. These p-values approximate the probability of the observed genotype and phenotype data under the null hypothesis that the LP-associated alleles and phenotyping errors alone account for the observed LP frequency.
            http://static-content.springer.com/image/art%3A10.1186%2F1471-2148-10-36/MediaObjects/12862_2009_Article_1252_Fig6_HTML.jpg

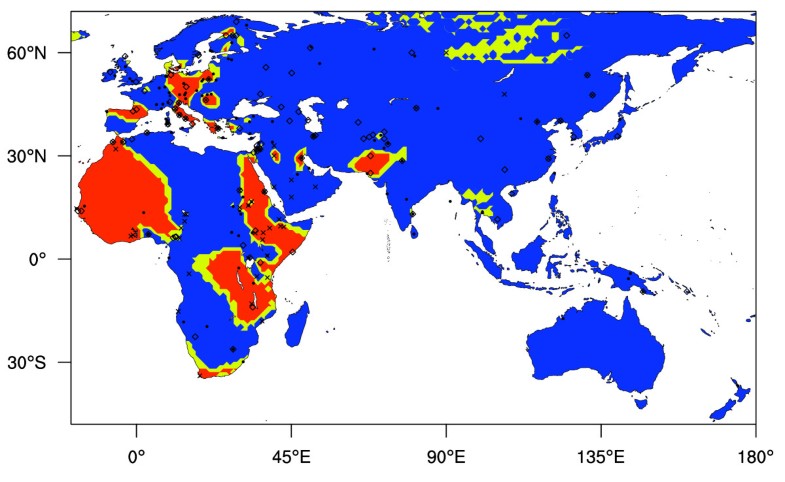

            Figure 6

            Old World LP genotype-phenotype correlation, obtained by theGenoPhenoMonte Carlo test. Dots represent LP phenotype data collection locations, crosses represent data collection locations for all currently known 4 LP-correlated alleles, and diamonds represent collection locations for data on -13,910 C>T only. Colour key shows the p value obtained by the GenoPheno test. Red colour represents values of p < 0.01, indicating a highly significant lack of correlation, yellow colour represents values of 0.01 ≤ p < 0.05, indicating a significant lack of correlation, and blue colour represents values of p ≥ 0.05, indicating no significant lack of correlation.

            Online Resource For LP Phenotype and Genotype Data and Associated Mapping

            The LP phenotype and genotype datasets are available at the GLAD (Global Lactase persistence Association Database) web site http://​www.​ucl.​ac.​uk/​mace-lab/​GLAD/​. These datasets will be updated every three months, and the maps corresponding to Figures 1 to 6 of this article will be regenerated from those updated databases. The web pages contain guidelines for what we consider "appropriate" LP data (as described at the Methods section). We encourage readers to send us new LP genotype and phenotype data whenever it is available.

            Discussion

            In this study we have identified regions where the current data on LP-associated allele frequencies is insufficient to explain the estimated LP phenotype frequencies, by surface interpolating LP genotype and phenotype data. Our analyses also indicate regions where genotypic or phenotypic data is sparse or non-existent (see also the maps of Additional Files 3, 4, and 5). Data collection from these regions is likely to be of value in developing a fuller understanding of the distribution and evolution of LP. We suggest that regions where LP-associated genotypes are under-predicting LP are good candidates for further genetic studies.

            We accept that surface interpolation can give misleading results when data are sparse and so urge caution in interpreting our results for such regions. The data used and maps generated will be regularly updated via the GLAD website http://​www.​ucl.​ac.​uk/​mace-lab/​GLAD/​. We therefore expect that problems caused by interpolation over regions with sparse data will diminish as more data become available. However, to indicate regions where sampling is sparse we have generated three extra maps (Additional Files 3, 4, and 5) showing the density of sample sites for phenotypic data, for sites where -13,910*T allele data is available, and for sites where data on all 4 LP-associated alleles is available, respectively. These maps were generated using 2-dimentional-kernel density estimation [3436] with a kernel bandwidth equal to half of the average nearest neighbour distance between sample sites.

            While on a broad scale most regions of the Old World have been sampled for the -13,910*T allele, data on frequencies of the other three LP-associated alleles is localised mainly to Africa and the Middle East. It is likely that further studies will identify appreciable frequencies of the -13,907*G, -13,915*G or -14,010*C alleles, or reveal new LP-associated alleles, in other regions. To illustrate how data on the three non -13,910*T alleles have added to our knowledge of the genetics of LP, we have generated two additional maps: one is showing the correlation between the LP phenotype and the LP phenotype predicted by data where all 4 LP-associated alleles were sequenced (Additional File 6), and the second is showing the correlation between the LP phenotype and the LP phenotype predicted by data on the -13,910*T allele alone (Additional File 7). We then subtracted the surfaces of these two figures (Additional File 8).

            Our analysis indicated a few regions (including Arabia and the Basque region) where the LP-associated allele frequency appears to over-predict LP phenotype frequency. If we assume that all four LP-associated alleles considered here are causative of the trait, or very tightly linked to causative variants, then it is likely that over-prediction is a result of population sampling problems. For example, the pastoralist Bedouin in Saudi Arabia have high frequencies of LP, while non-Bedouin Arabs from the same region typically have lower frequencies [37]. Alternatively, over-prediction may to an extent arise through post weaning non-genetic causes of LP, such as secondary lactose intolerance caused by gut trauma [36]. To an extent these problems of matching population groups from the same geographic regions applies to our whole analysis. However, it is notable from Figure 5 that where a lack of correspondence between LP phenotype and predicted phenotype frequencies occurs, it is usually under-prediction (maximum = 0.94; for West Africa), while over-prediction is rare and considerably smaller in scale (maximum = 0.29; for the Basque region). In some cases it was possible to identify genotype and phenotype data originating from the same populations or ethnic groups. For such populations we also performed a separate GenoPheno analysis (see Table 1, [8]). We note that the large discrepancies between LP phenotype frequencies and those predicted from allele frequency data, from this analysis of 'matched' populations, mostly occur in the same regions as where large discrepancies are indicated from the interpolation analysis (see Figure 5). This illustrates that - at a broad scale - the interpolation method that we have employed provides a reasonable approximation of where genotypic data are unable to explain the observed frequency of the LP phenotype, despite much of the data we use originating from different ethnic groups with different subsistence strategies [38, 39].

            By applying the GenoPheno statistical procedure to interpolated layers of phenotype and genotype associated data (Figure 6), we have identified west and parts of east Africa, eastern Europe, and parts of western, central, and southern Asia as potential targets for further genetic studies. An absence of data for the -13,907*G, -13,915*G and -14,010*C alleles in many of these regions may partly explain under-prediction (Figure 5 and Additional Files 6, 7, and 8). Previous studies have noted the possibility of under-prediction in eastern Europe and proposed the presence of alleles other than -13,910*T [40, 41]. The population sampling problems described above may also explain the under-prediction we infer in parts of southern Asia, as in each of these regions, the locations where phenotype and genotype data were obtained are mostly well separated. This population data-matching problem is, however, unlikely to explain the lack of correspondence between LP and allele frequency-based predicted LP frequencies in the region around Pakistan and Afghanistan, as well as in west Africa and Italy. Further genetic studies in these regions should prove informative.

            Conclusion

            In this study we have demonstrated that lactase persistence genotype data is currently insufficient to explain lactase persistence phenotype frequency in western and eastern Africa and several other Old World regions. The identification of additional LP-associated or LP-causative alleles, especially in these regions, will help not only in developing a better understanding of the evolution of LP but also in elucidating the physiological mechanisms that underlie the trait. The interpolation and mapping approach that we have applied in this study may also be of value in studying the underlying genetic basis and evolution of other phenotypic variation that impacts on human health, such as the distribution of functional variation in drug metabolising enzymes [42].

            Declarations

            Acknowledgements

            We would like to thank Neil Bradman, Sarah Browning, Chris Plaster, Naser Ansari Pour, N. Saha, and Ayele Tarekegn for their help with the samples, as well as Charlotte Mulcare and Mike Weale who laid the foundations for this study, Pascale Gerbault, Adam Powell, and Anke Liebert for their helpful comments and suggestions and Melford Charitable Trust for support for sequencing. Yuval Itan was funded by the B'nai B'rith/Leo Baeck London Lodge and Annals of Human Genetics scholarships, Bryony L. Jones by a MRC/DTA studentship, and Catherine J.E. Ingram by a BBSRC-CASE studentship. We thank the AHRC Centre for the Evolution of Cultural Diversity (CECD) and the Centre for Mathematics and Physics in the Life Sciences and Experimental Biology (CoMPLEX), UCL, for supporting this research.

            Authors’ Affiliations

            (1)
            Research Department of Genetics, Evolution and Environment, University College London
            (2)
            CoMPLEX (Centre for Mathematics & Physics in the Life Sciences and Experimental Biology), University College London
            (3)
            AHRC Centre for the Evolution of Cultural Diversity, Institute of Archaeology, University College London

            References

            1. Ingram CJ, Mulcare CA, Itan Y, Thomas MG, Swallow DM: Lactose digestion and the evolutionary genetics of lactase persistence. Hum Genet 2009,124(6):579–591.PubMedView Article
            2. Heyman MB: Lactose intolerance in infants, children, and adolescents. Pediatrics 2006,118(3):1279–1286.PubMedView Article
            3. Newcomer AD, McGill DB, Thomas PJ, Hofmann AF: Prospective comparison of indirect methods for detecting lactase deficiency. N Engl J Med 1975,293(24):1232–1236.PubMedView Article
            4. Peuhkuri K: Lactose, lactase, and bowel disorders. Helsinki: University of Helsinki; 2000.
            5. Gudmand-Hoyer E, Skovbjerg H: Disaccharide digestion and maldigestion. Scand J Gastroenterol Suppl 1996, 216:111–121.PubMedView Article
            6. Swallow DM: Genetics of lactase persistence and lactose intolerance. Annu Rev Genet 2003, 37:197–219.PubMedView Article
            7. Mulcare CA: The evolution of the lactase persistence phenotype. London: University of London; 2006.
            8. Mulcare CA, Weale ME, Jones AL, Connell B, Zeitlyn D, Tarekegn A, Swallow DM, Bradman N, Thomas MG: The T allele of a single-nucleotide polymorphism 13.9 kb upstream of the lactase gene (LCT) (C-13.9kbT) does not predict or cause the lactase-persistence phenotype in Africans. Am J Hum Genet 2004,74(6):1102–1110.PubMedView Article
            9. Rasinpera H, Savilahti E, Enattah NS, Kuokkanen M, Totterman N, Lindahl H, Jarvela I, Kolho KL: A genetic test which can be used to diagnose adult-type hypolactasia in children. Gut 2004,53(11):1571–1576.PubMedView Article
            10. Swallow DM: DNA test for hypolactasia premature. Gut 2004, 55:131–132.
            11. Ingram CJ, Elamin MF, Mulcare CA, Weale ME, Tarekegn A, Raga TO, Bekele E, Elamin FM, Thomas MG, Bradman N, et al.: A novel polymorphism associated with lactose tolerance in Africa: multiple causes for lactase persistence? Hum Genet 2007,120(6):779–788.PubMedView Article
            12. Tishkoff SA, Reed FA, Ranciaro A, Voight BF, Babbitt CC, Silverman JS, Powell K, Mortensen HM, Hirbo JB, Osman M, et al.: Convergent adaptation of human lactase persistence in Africa and Europe. Nat Genet 2007,39(1):31–40.PubMedView Article
            13. Enattah NS, Sahi T, Savilahti E, Terwilliger JD, Peltonen L, Jarvela I: Identification of a variant associated with adult-type hypolactasia. Nat Genet 2002,30(2):233–237.PubMedView Article
            14. Lewinsky RH, Jensen TG, Moller J, Stensballe A, Olsen J, Troelsen JT: T-13910 DNA variant associated with lactase persistence interacts with Oct-1 and stimulates lactase promoter activity in vitro. Hum Mol Genet 2005,14(24):3945–3953.PubMedView Article
            15. Kuokkanen M, Enattah NS, Oksanen A, Savilahti E, Orpana A, Jarvela I: Transcriptional regulation of the lactase-phlorizin hydrolase gene by polymorphisms associated with adult-type hypolactasia. Gut 2003,52(5):647–652.PubMedView Article
            16. Olds LC, Sibley E: Lactase persistence DNA variant enhances lactase promoter activity in vitro: functional role as a cis regulatory element. Hum Mol Genet 2003,12(18):2333–2340.PubMedView Article
            17. Wang Y, Harvey CB, Hollox EJ, Phillips AD, Poulter M, Clay P, Walker-Smith JA, Swallow DM: The genetically programmed down-regulation of lactase in children. Gastroenterology 1998,114(6):1230–1236.PubMedView Article
            18. Bersaglieri T, Sabeti PC, Patterson N, Vanderploeg T, Schaffner SF, Drake JA, Rhodes M, Reich DE, Hirschhorn JN: Genetic signatures of strong recent positive selection at the lactase gene. Am J Hum Genet 2004,74(6):1111–1120.PubMedView Article
            19. Coelho M, Luiselli D, Bertorelle G, Lopes AI, Seixas S, Destro-Bisol G, Rocha J: Microsatellite variation and evolution of human lactase persistence. Hum Genet 2005,117(4):329–339.PubMedView Article
            20. Burger J, Kirchner M, Bramanti B, Haak W, Thomas MG: Absence of the lactase-persistence-associated allele in early Neolithic Europeans. Proc Natl Acad Sci USA 2007,104(10):3736–3741.PubMedView Article
            21. Itan Y, Powell A, Beaumont MA, Burger J, Thomas MG: The origins of lactase persistence in Europe. PLoS Comput Biol 2009,5(8):e1000491.PubMedView Article
            22. Gerbault P, Moret C, Currat M, Sanchez-Mazas A: Impact of selection and demography on the diffusion of lactase persistence. PLoS One 2009,4(7):e6369.PubMedView Article
            23. Enattah NS, Jensen TG, Nielsen M, Lewinski R, Kuokkanen M, Rasinpera H, El-Shanti H, Seo JK, Alifrangis M, Khalil IF, et al.: Independent introduction of two lactase-persistence alleles into human populations reflects different history of adaptation to milk culture. Am J Hum Genet 2008,82(1):57–72.PubMedView Article
            24. Ingram CJ, Raga TO, Tarekegn A, Browning SL, Elamin MF, Bekele E, Thomas MG, Weale ME, Bradman N, Swallow DM: Multiple Rare Variants as a Cause of a Common Phenotype: Several Different Lactase Persistence Associated Alleles in a Single Ethnic Group. Journal of Molecular Evolution 2009,69(6):579–588.PubMedView Article
            25. Enattah NS, Trudeau A, Pimenoff V, Maiuri L, Auricchio S, Greco L, Rossi M, Lentze M, Seo JK, Rahgozar S, et al.: Evidence of still-ongoing convergence evolution of the lactase persistence T-13910 alleles in humans. Am J Hum Genet 2007,81(3):615–625.PubMedView Article
            26. Ingram CJ: The evolutionary genetics of lactase persistence in Africa and the Middle East. London: University of London; 2008.
            27. Almon R, Engfeldt P, Tysk C, Sjostrom M, Nilsson TK: Prevalence and trends in adult-type hypolactasia in different age cohorts in Central Sweden diagnosed by genotyping for the adult-type hypolactasia-linked LCT -13910C > T mutation. Scand J Gastroenterol 2007,42(2):165–170.PubMedView Article
            28. Myles S, Bouzekri N, Haverfield E, Cherkaoui M, Dugoujon JM, Ward R: Genetic evidence in support of a shared Eurasian-North African dairying origin. Hum Genet 2005,117(1):34–42.PubMedView Article
            29. Sibson R: A brief description of natural neighbor interpolation. In Interpreting Multivariate Data (Probability & Mathematical Statistics). Edited by: Barnett V. John Wiley & Sons; 1981:21–36.
            30. Watson D: Contouring: A Guide to the Analysis and Display of Spatial Data. Pergamon; 1992.
            31. Python Programming Language [http://​www.​python.​org/​]
            32. Watson D: nngridr: An implementation of natural neighbour implementation. Volume 1. David Watson; 1994.
            33. PyNGL [http://​www.​pyngl.​ucar.​edu/​]
            34. Wand MP: Fast computation of multivariate kernel estimators. Journal of Computational and Graphical Statistics 1994, 3:433–445.View Article
            35. Wand MP, Jones MC: Kernel Smoothing. Chapman & Hall; 1994.
            36. Wand MP, Ripley B: KernSmooth. Functions for kernel smoothing for Wand & Jones (1995). [http://​cran.​r-project.​org/​web/​packages/​KernSmooth/​index.​html] 2009.
            37. Hijazi SS, Abulaban A, Ammarin Z, Flatz G: Distribution of adult lactase phenotypes in Bedouins and in urban and agricultural populations of Jordan. Tropical & Geographical Medicine 1983, 35:157–161.
            38. Blench R: Archaeology, Language, and the African Past. AltaMira Press, U.S.; 2006.
            39. Tishkoff SA, Reed FA, Friedlaender FR, Ehret C, Ranciaro A, Froment A, Hirbo JB, Awomoyi AA, Bodo JM, Doumbo O, et al.: The genetic structure and history of Africans and African Americans. Science 2009,324(5930):1035–1044.PubMedView Article
            40. Anagnostou P, Battaggia C, Coia V, Capelli C, Fabbri C, Pettener D, Destro-Bisol G, Luiselli D: Tracing the distribution and evolution of lactase persistence in Southern Europe through the study of the T(-13910) variant. Am J Hum Biol 2009,21(2):217–219.PubMedView Article
            41. Mottes M, Belpinati F, Milani M, Saccomandi D, Petrelli E, Calacoci M, Chierici R, Pignatti PF, Borgna-Pignatti C: Genetic testing for adult-type hypolactasia in Italian families. Clin Chem Lab Med 2008,46(7):980–984.PubMedView Article
            42. Xie HG, Kim RB, Wood AJ, Stein CM: Molecular basis of ethnic differences in drug disposition and response. Annu Rev Pharmacol Toxicol 2001, 41:815–850.PubMedView Article
            43. Olatunbosun DA, Kwaku Adadevoh B: Lactase deficiency in Nigerians. Am J Dig Dis 1971,16(10):909–914.PubMedView Article
            44. Arnold J, Diop M, Kodjovi M, Rozier J: L'intolerance au lactose chez l'adulte au Senegal. C R Seances Soc Biol Fil 1980, 174:983–992.PubMed
            45. Bayoumi RA, Flatz SD, Kuhnau W, Flatz G: Beja and Nilotes: nomadic pastoralist groups in the Sudan with opposite distributions of the adult lactase phenotypes. Am J Phys Anthropol 1982,58(2):173–178.PubMedView Article
            46. Cook GC, Kajubi SK: Tribal incidence of lactase deficiency in Uganda. Lancet 1966,1(7440):725–729.PubMedView Article
            47. Sun HM, Qiao YD, Chen F, Xu LD, Bai J, Fu SB: The lactase gene -13910T allele can not predict the lactase-persistence phenotype in north China. Asia Pac J Clin Nutr 2007,16(4):598–601.PubMed
            48. Wang YG, Yan YS, Xu JJ, Du RF, Flatz SD, Kuhnau W, Flatz G: Prevalence of primary adult lactose malabsorption in three populations of northern China. Hum Genet 1984,67(1):103–106.PubMedView Article
            49. Swaminathan N, Mathan VI, Baker SJ, Radhakrishnan AN: Disaccharidase levels in jejunal biopsy specimens from American and south Indian control subjects and patients with tropical sprue. Clin Chim Acta 1970,30(3):707–712.PubMedView Article
            50. Yoshida Y, Sasaki G, Goto S, Yanagiya S, Takashina K: Studies on the etiology of milk intolerance in Japanese adults. Gastroenterol Jpn 1975,10(1):29–34.PubMed
            51. Gupta PS, Misra RC, Sarin GS, Ramachandran KA, Chuttani HK: Intestinal disaccharidases activity in normal adult population in tropics. J Trop Med Hyg 1971,74(10):225–229.PubMed
            52. Tandon RK, Joshi YK, Singh DS, Narendranathan M, Balakrishnan V, Lal K: Lactose intolerance in North and South Indians. Am J Clin Nutr 1981,34(5):943–946.PubMed
            53. Kozlov AI: Hypolactasia in the indigenous populations of northern Russia. Int J Circumpolar Health 1998,57(1):18–21.PubMed
            54. Jussila J: Milk intolerance and lactose malabsorption in hospital patients and young servicemen in Finland. Ann Clin Res 1969,1(3):199–207.PubMed
            55. Ladas S, Papanikos J, Arapakis G: Lactose malabsorption in Greek adults: correlation of small bowel transit time with the severity of lactose intolerance. Gut 1982,23(11):968–973.PubMedView Article
            56. Nagy D, Bogacsi-Szabo E, Varkonyi A, Csanyi B, Czibula A, Bede O, Tari B, Rasko I: Prevalence of adult-type hypolactasia as diagnosed with genetic and lactose hydrogen breath tests in Hungarians. Eur J Clin Nutr 2009,63(7):909–912.PubMedView Article
            57. Czeizel A, Flatz G, Flatz SD: Prevalence of primary adult lactose malabsorption in Hungary. Hum Genet 1983,64(4):398–401.PubMedView Article
            58. Fielding JF, Harrington MG, Fottrell PF: The incidence of primary hypolactasia amongst native Irish. Ir J Med Sci 1981,150(9):276–277.PubMedView Article
            59. Meloni T, Colombo C, Ruggiu G, Dessena M, Meloni GF: Primary lactase deficiency and past malarial endemicity in Sardinia. Ital J Gastroenterol Hepatol 1998,30(5):490–493.PubMed
            60. Burgio GR, Flatz G, Barbera C, Patane R, Boner A, Cajozzo C, Flatz SD: Prevalence of primary adult lactose malabsorption and awareness of milk intolerance in Italy. Am J Clin Nutr 1984,39(1):100–104.PubMed
            61. Cavalli-Sforza LT, Strata A, Barone A, Cucurachi L: Primary adult lactose malabsorption in Italy: regional differences in prevalence and relationship to lactose intolerance and milk consumption. Am J Clin Nutr 1987,45(4):748–754.PubMed
            62. Rinaldi E, Albini L, Costagliola C, De Rosa G, Auricchio G, De Vizia B, Auricchio S: High frequency of lactose absorbers among adults with idiopathic senile and presenile cataract in a population with a high prevalence of primary adult lactose malabsorption. Lancet 1984,1(8373):355–357.PubMedView Article
            63. Rahimi AG, Delbruck H, Haeckel R, Goedde HW, Flatz G: Persistence of high intestinal lactase activity (lactose tolerance) in Afghanistan. Hum Genet 1976,34(1):57–62.PubMedView Article
            64. Sadre M, Karbasi K: Lactose intolerance in Iran. Am J Clin Nutr 1979,32(9):1948–1954.PubMed
            65. Gilat T, Malachi EG, Shochet SB: Lactose tolerance in an Arab population. Am J Dig Dis 1971,16(3):203–206.PubMedView Article
            66. Hijazi SS, Abulaban A, Ammarin Z, Flatz G: Distribution of adult lactase phenotypes in Bedouins and in urban and agricultural populations of Jordan. Trop Geogr Med 1983,35(2):157–161.PubMed
            67. Ahmad M, Flatz G: Prevalence of primary adult lactose malabsorption in Pakistan. Hum Hered 1984,34(2):69–75.PubMedView Article
            68. Dissanayake AS, Al-Quorain AA, Al-Breiki H, El-Munshid HA, Wosornu L: Prevalence of primary adult lactose malabsorption in the Eastern Region of Saudi Arabia. Annals of Saudi Med 1990, 10:598–601.
            69. Flatz G, Henze HJ, Palabiyikoglu E, Dagalp K, Turkkan T: Distribution of the adult lactase phenotypes in Turkey. Trop Geogr Med 1986,38(3):255–258.PubMed

            Copyright

            © Itan et al. 2010

            This article is published under license to BioMed Central Ltd. This is an Open Access article distributed under the terms of the Creative Commons Attribution License (http://​creativecommons.​org/​licenses/​by/​2.​0), which permits unrestricted use, distribution, and reproduction in any medium, provided the original work is properly cited.

            Advertisement
